Description

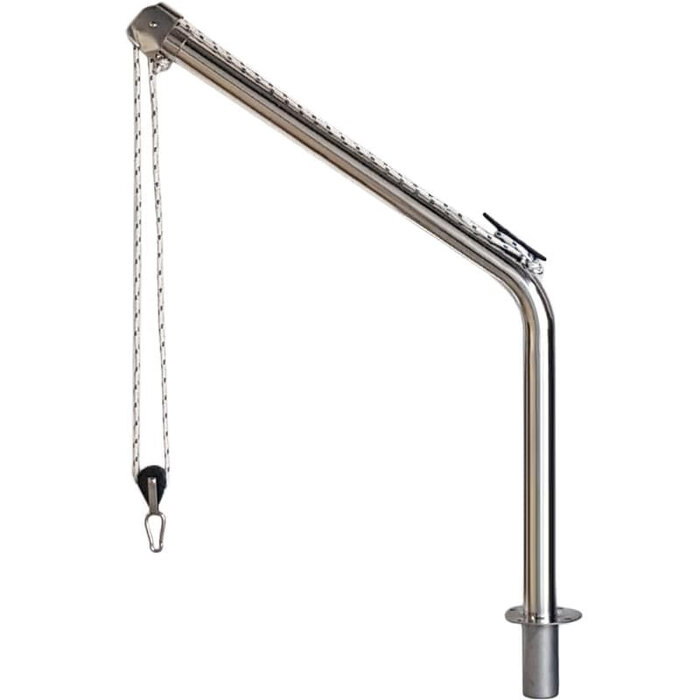

This Stainless Steel Davit comes complete with the corresponding flange, a block, a line, and a carabiner hook. The Davit has a tube diameter of 60mm, is 122cm high, 80cm wide, and has a maximum load capacity of 85kg. For installation, a hole size of approximately 66mm is required. The flange itself has a diameter of 150mm. The flange can be secured with 4 countersunk M8 bolts (not included, length varies per situation). The Davit is supplied per piece.
- Stainless Steel 316
- Davit Diameter: 60mm
- Max Load Capacity per Davit: 85kg
- Installation Hole Size: 66mm
- Includes Flange

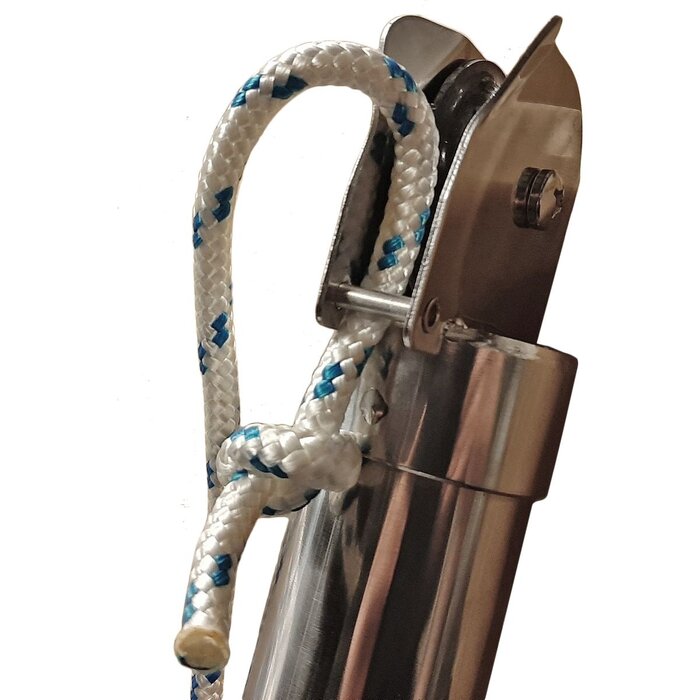

- Includes Block
- Includes Line
- Includes Carabiner Hook

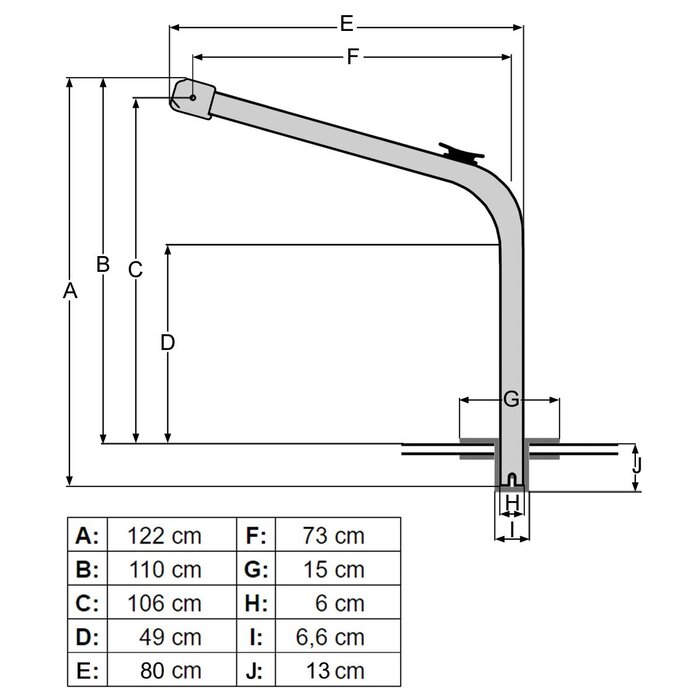

Dimensions
- Total Davit Height (A): 122cm
- Total Height from Deck (B): 110cm
- Distance from Deck to Pulley Center (C): 106cm
- Distance from Deck to Bending Point (D): 49cm
- Total Width (E): 80cm
- Pulley Center to Pot Center (F): 80cm

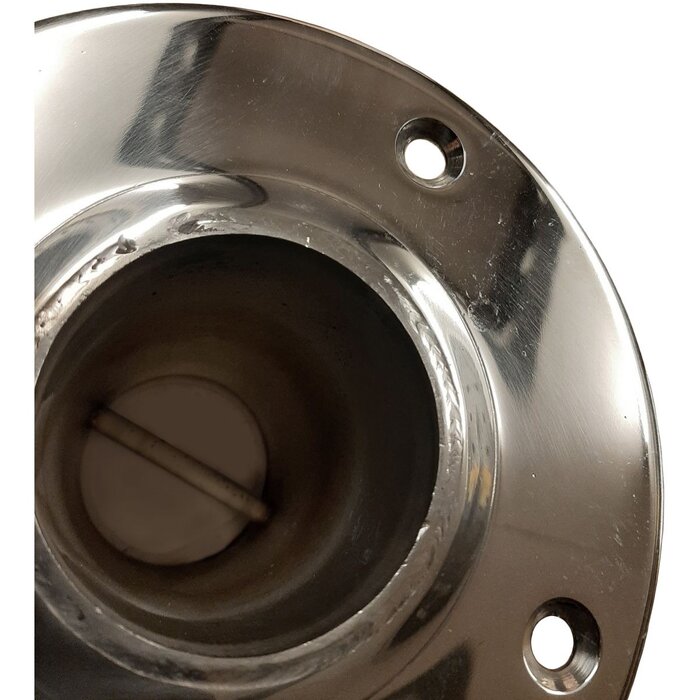

- Flange Pot Diameter (G): 150mm
- Davit Diameter (H): 60mm
- Wall Thickness: 1.7mm
- Sawing Hole Diameter (I): 66mm
- Installation Depth of Pot (J): 130mm
- Center-to-Center Hole Distance on Attachment Holes: 87mm
- Opposite Attachment Hole Center-to-Center Distance: 122mm
