Description

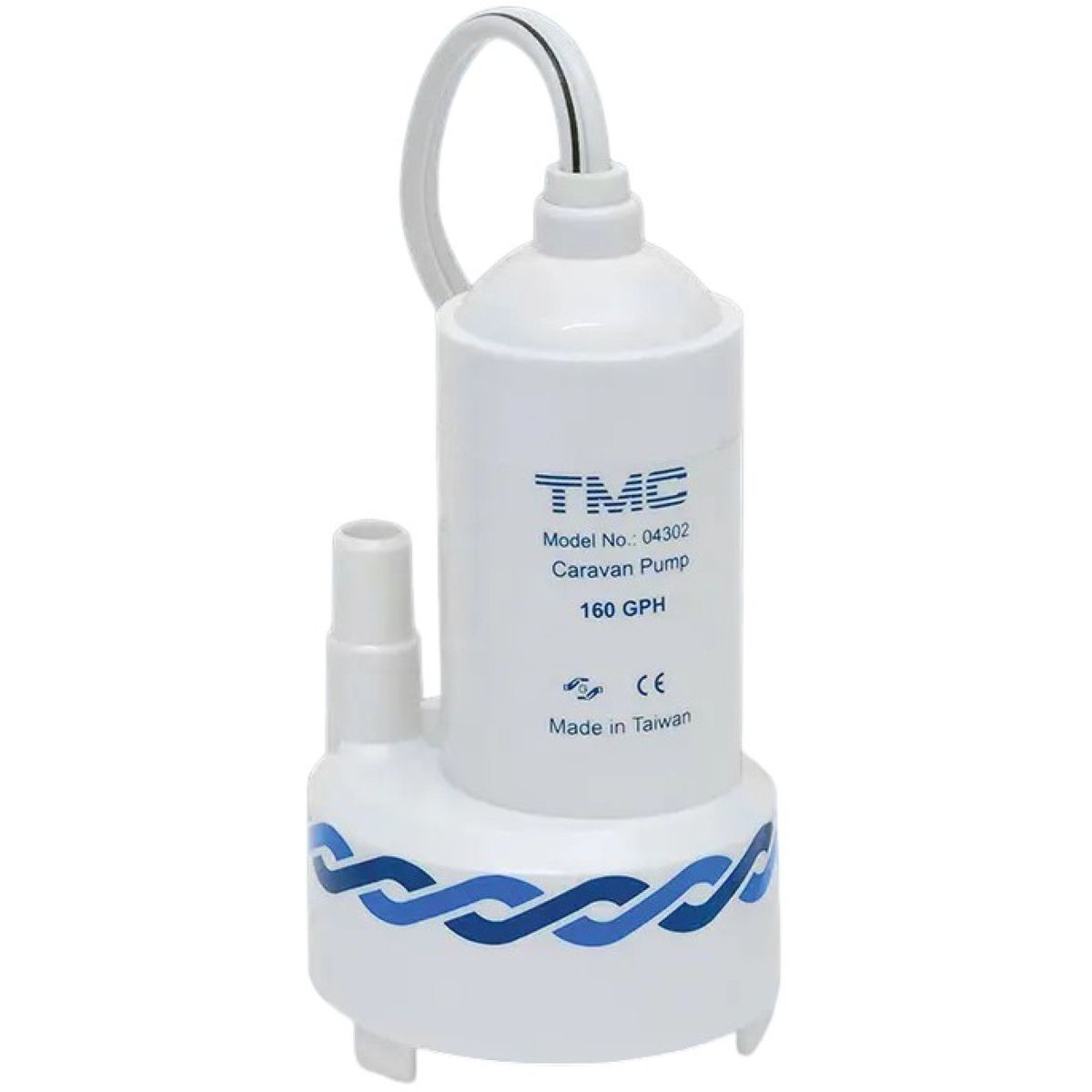

The TMC submersible pump is a compact submersible pump for boats, motorhomes and caravans. Thanks to its small size, the pump is easy to place in a water tank. The pump operates on 12V and has low power consumption. It is suitable for filling, draining and transferring clean water without solid particles. The pump is fully submersible and designed for non-continuous use. For a long service life, a maximum continuous operating time of 15 minutes is recommended.
Product features
- Compact design, easy to place in a water tank.
- Low power consumption.
- Suitable for 12V DC.
- Designed for intermittent use and fully submersible only.
- Maximum continuous operating time: 15 minutes.
- Suitable for draining, filling and transferring liquids without solid particles.
Specifications
| Capacity | 160 GPH (approx. 606 litres/hour) |
|---|---|
| Voltage | 12V DC |
| Current consumption | 2.5 A |
| Fuse | 4 A |
| Output at 0 m head | 606 litres/hour |
| Output at 1 m head | 492 litres/hour |
| Output at 2 m head | 340 litres/hour |
| Maximum head | 4.6 metres |
| Hose connection | 11/32” (8.7 mm) or 13/32” (10.3 mm) |
Please note: The stated capacity may vary by ±10% depending on supply voltage, hose type and installation.

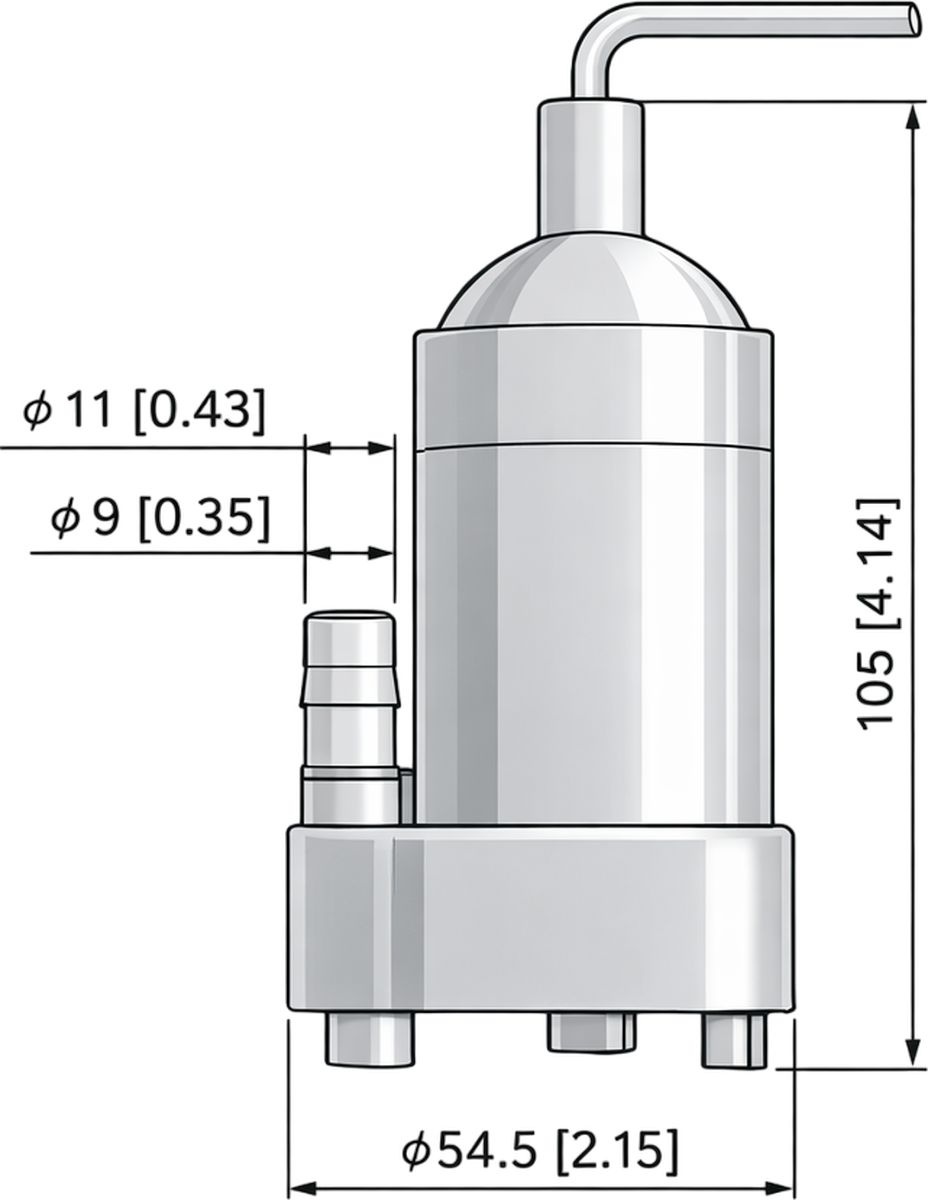

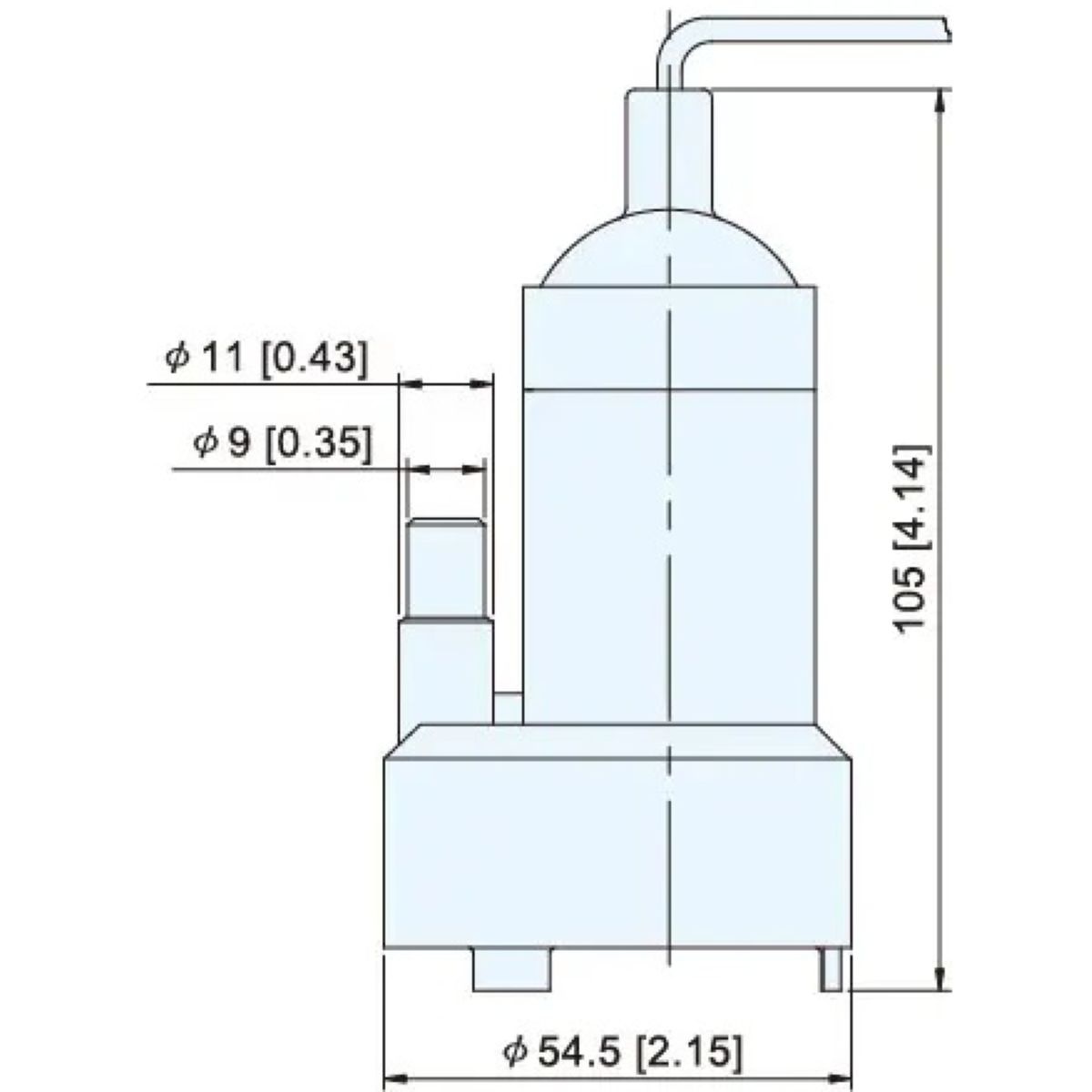

Dimensions
- Height: approx. 105 mm
- Pump diameter: approx. 54.5 mm
Important notes
- Never allow the pump to run dry.
- Do not use at water temperatures above 60°C.
- Maximum continuous operation: 15 minutes.
- Always check correct polarity when connecting.

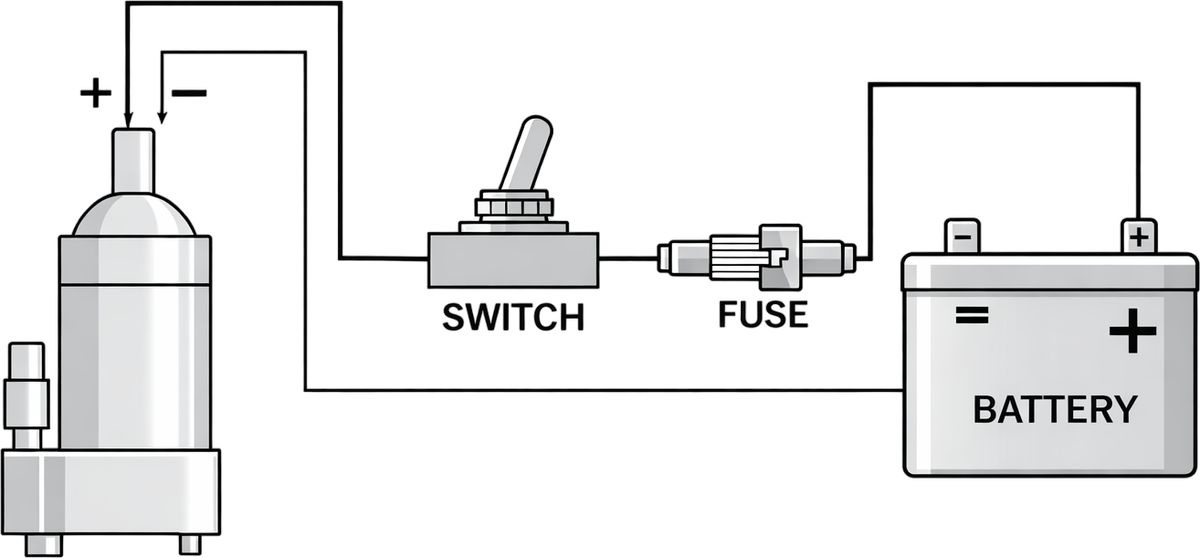

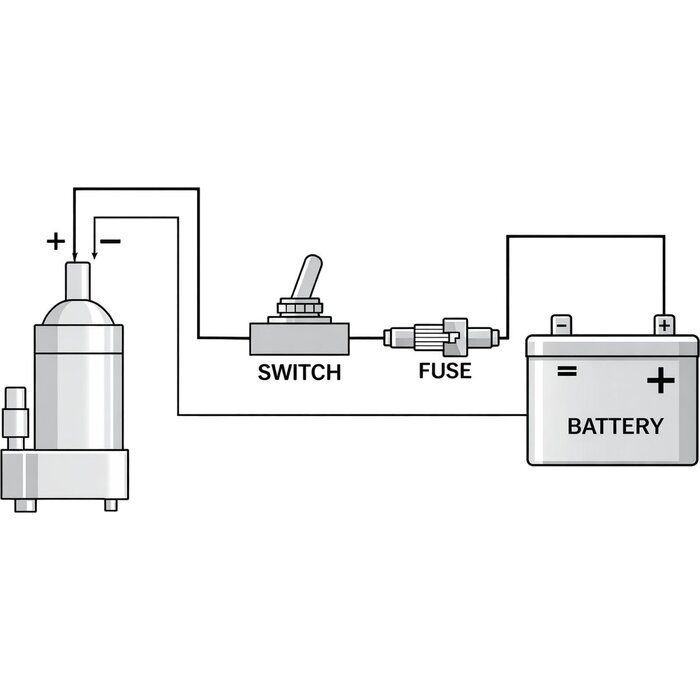

Wiring diagram
Manual operation via switch and fuse, connected to a battery
